programmable electronic load

UYIGAO DC electronic loads provide you with the flexibility to test a wide range of power sources. Perform both static and dynamic tests to ensure that your devices can handle the steady state and occasional transient loads. The 16-bit voltage, current, and power-measurement systems provide accuracy analysis.

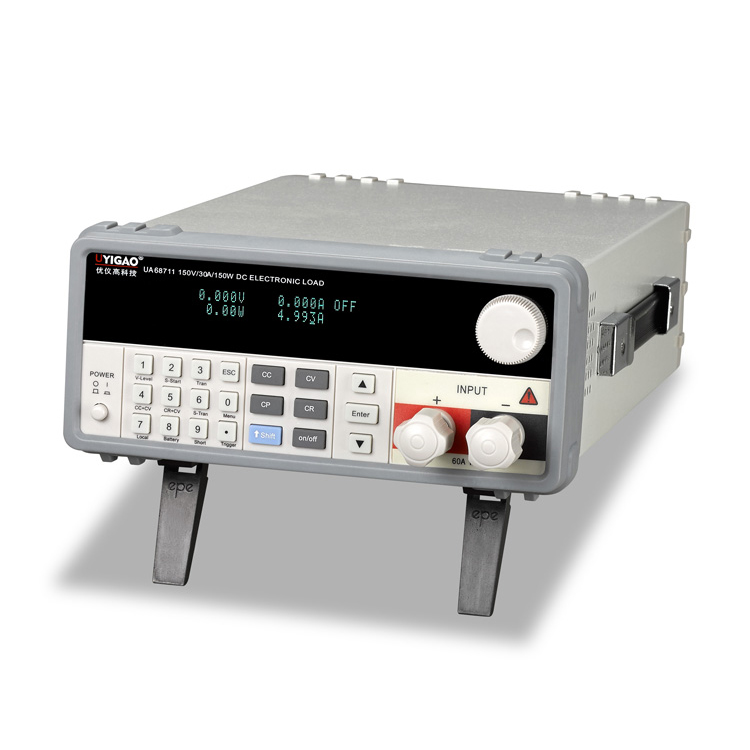

UA68711 electronic load

Key Specifications:
Resolution: 0.1mV,0.01mA
Accouracy: 0.03%
Basic current rising speed: 2.5A/us



instruction:

* Supports external trigger input, output
* Automatic test function set, easy to use
* RS-232 interface, can be directly linked to the ordinary RS-232 line without the need to buy professional cable.



ModelUA68711
Rated ValuedInput Voltage0~220V
Input Current1mA~30A
Input Power150W

RangeAccuracyResolution
Load Accuracy0-36V±(0.05%+0.03%FS)1mV
0-360V±(0.05%+0.03%FS)10 mV
0-3A±(0.05%+0.05%FS)0.1 mA
0-30A±(0.05%+0.05%FS)1 mA
CV Model1.5V-36V±(0.05%+0.03%FS)1mV
1.5V-360V±(0.05%+0.03%FS)10mV
CC Model0-3A±(0.05%+0.05%FS)0.1 mA
0-30A±(0.05%+0.05%FS)1mA
CR Model0.05Ω-5Ω±(0.2%+0.2%FS)0.001Ω
(When input voltage and current value≥10%FS)0.5Ω-50Ω±(0.1%+0.1%FS)0.01Ω
5Ω-500Ω±(0.1%+0.1%FS)0.1Ω
500Ω-5KΩ±(1%+1%FS)
Fix power model0-50W±(0.1%+0.1%FS)1 mW
(When input voltage and current value≥10%FS)0-150W±(0.1%+0.1%FS)10 mW

0-9.9999V±(0.05%+0.03%FS)0.1mV
Voltage measurement accuracy10.000-99.999V±(0.05%+0.03%FS)1mV

100.00-360.00V±(0.05%+0.03%FS)10mV
Current measurement accuracy0-9.9999A±(0.05%+0.05%FS)0.1 mA
10.000-30.000±(0.05%+0.05%FS)1mA
The battery test functionInput Voltage= 0.8-360V        Max. Capacity= 999A/H
Resolution ratio=0.1mA       Discharge time=1~60000sec
Dynamic Testing ModelT1&T2(A Value or B value test time):0.1mS-999S   Error<2.5% + 0.1mS
Protective Range>Rated condition 5%
Input terminal Impedance≥200KΩ
DimensionW*H*D     480mm*300mm*195mm
Weight6.55Kg
