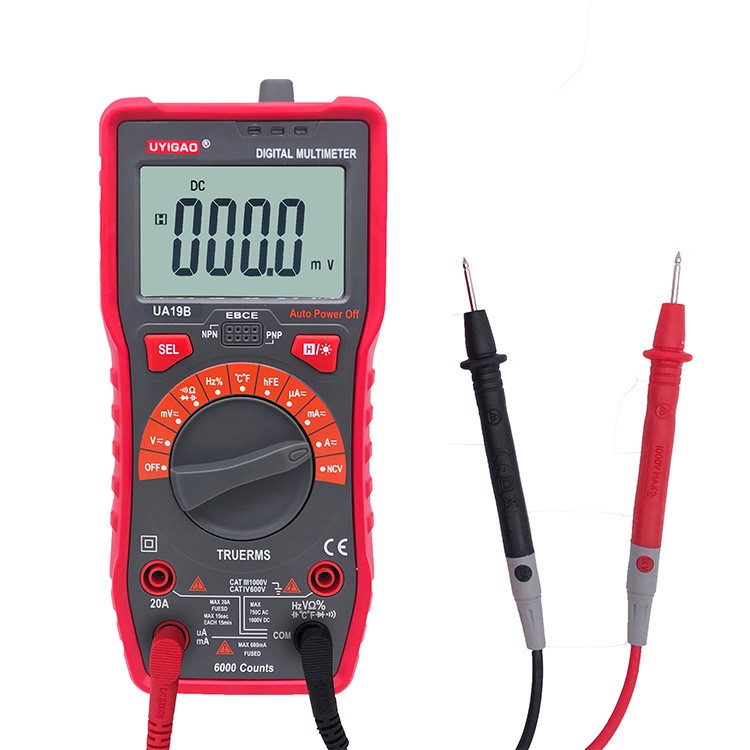

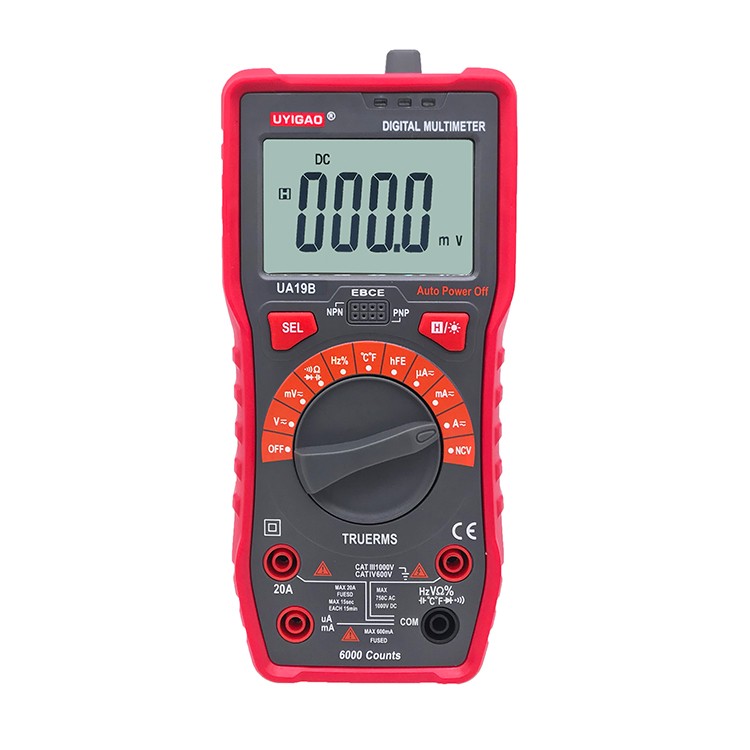

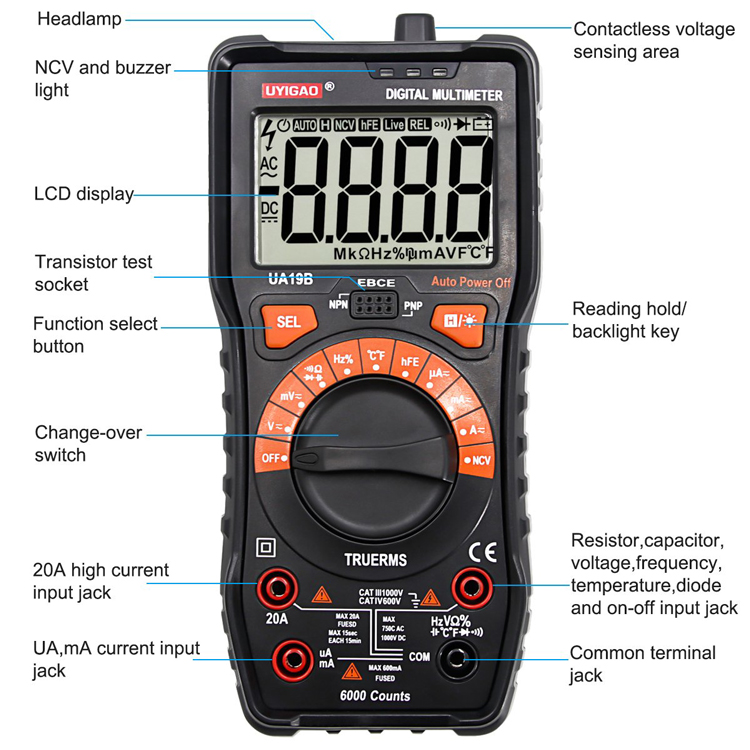

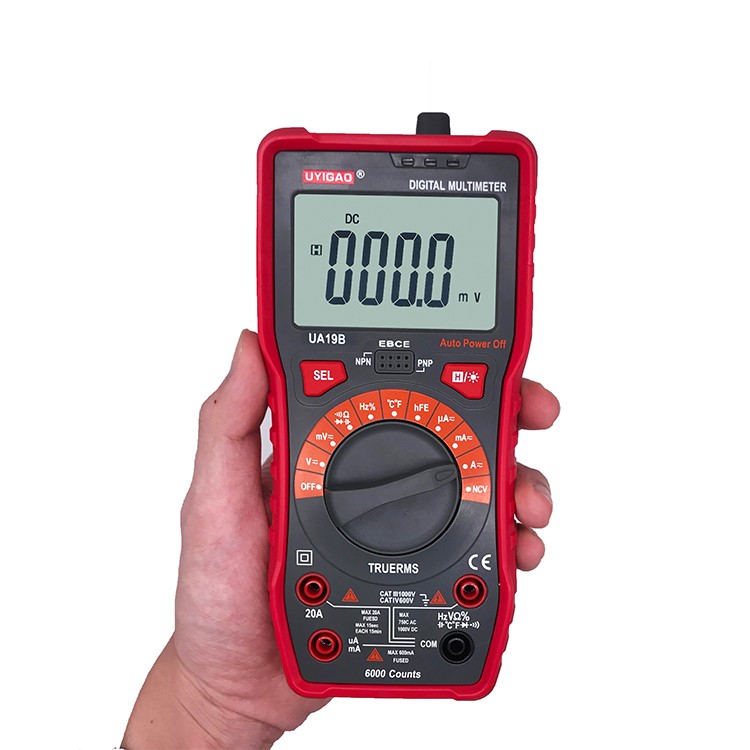

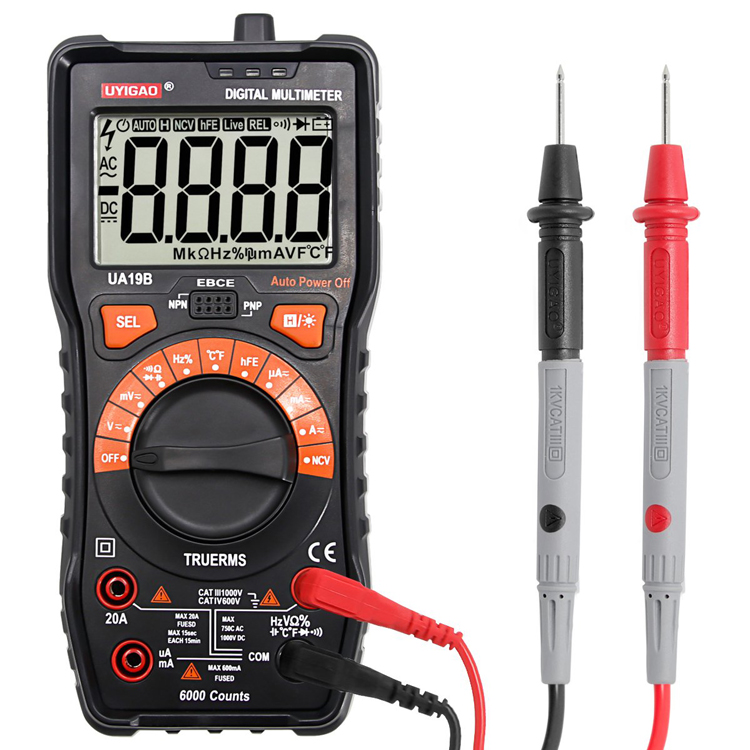

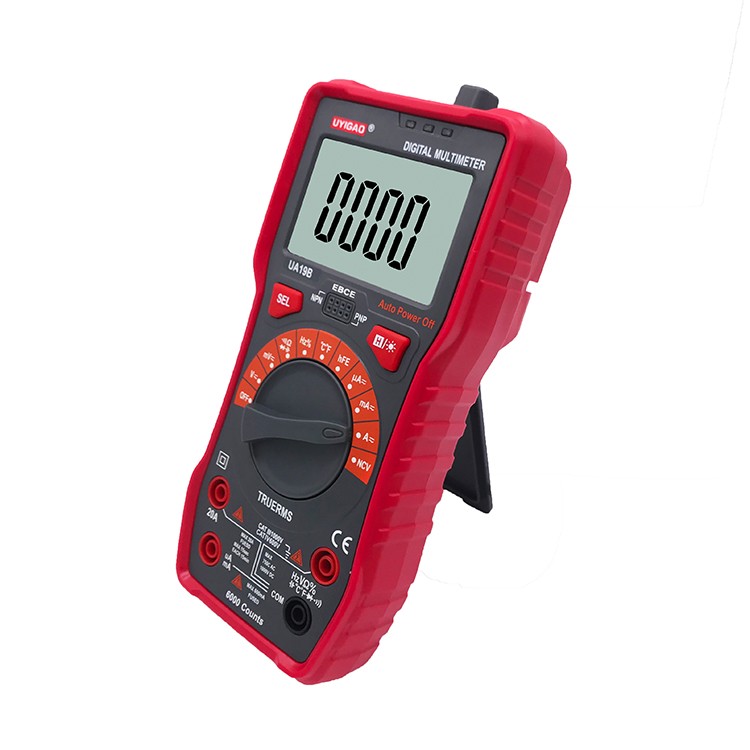

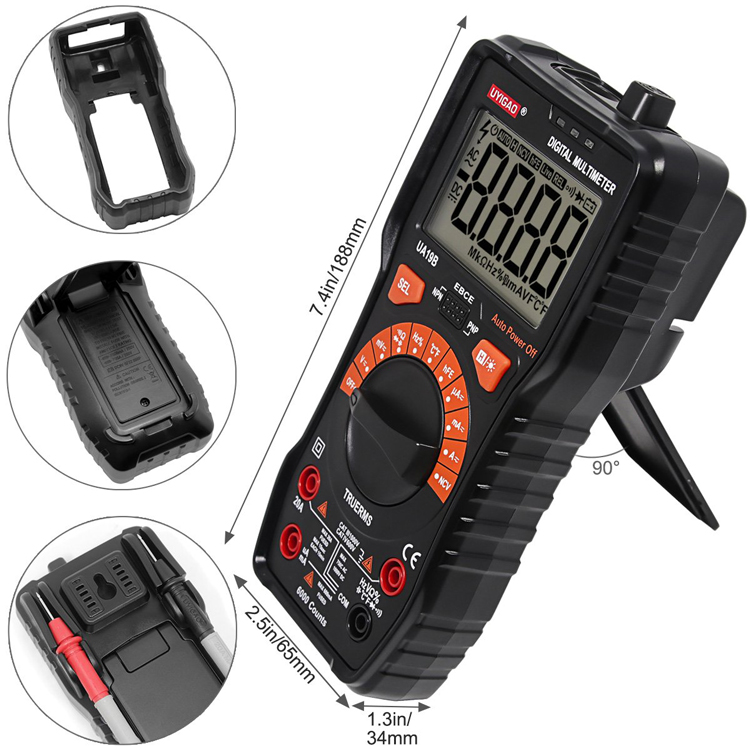

UA19B digital multimeter with multifunction tester

Multimeter with CAT III 1000V ,20A,NCV and True RMS with Auto range 6000 counts; DV1000V ; AC 750V;Capacitamce ;Temperature; Diode Test ;Transistor test ;Circuit On/Off Test ;Duty Ratio ;Frequency; Backlight ;Data hold

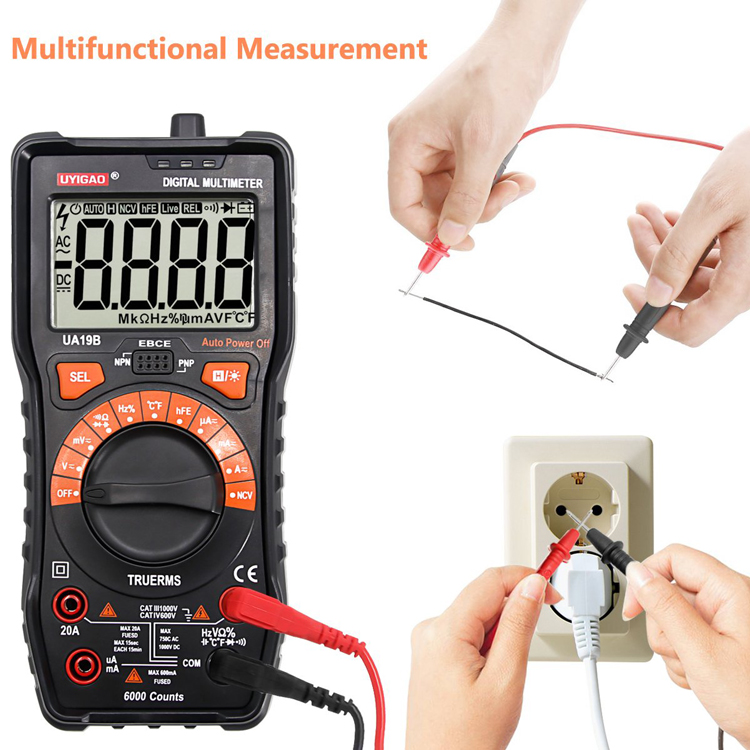

Digital multimeter, 6000 Counts Auto-Ranging Electronic Measuring Instrument AC Voltage Detector Handheld Amp / Ohm / Volt Test Meter NCV Multi Tester Diode and Continuity Test with LCD Display



UA19BMultimeter with CAT III 1000V ,20A,NCV and True RMS with Auto range 6000 counts; DV1000V ; AC 750V;Capacitamce ;Temperature; Diode Test ;Transistor test ;Circuit On/Off Test ;Duty Ratio ;Frequency; Backlight ;Data hold



UA19B General characteristics:
--DC Voltage:600mV/6V/60V±(0.5%+ 3);600V/1000V±(0.8%+ 5)
--AC Voltage:600mV±(1.2%+5);6V/60V±(0.8%+3);600V/750V±(1.0%+10)
--DC Current:60uA/600uA/6000uA/60mA/600mA±(0.8%+3);20A±(2.0%+10)
--AC Current:60uA/600uA/6000uA/60mA/600mA±(1.0%+3);20A±(2.5%+10)
--Frequency:9.999Hz-9.999MHZ ±(1.0%+3)
--Duty cycle:0.1% - 99.9% ±3.0%
--Resistance:600/6k/60k/600k±(0.8%+3);6M/60M±(1.2%+3)
--Capacitance:9.999nF-99.99mF
--Fuse protection:uA,mA Gear fuse:FF630mA/250V; A Gear fuse: FF20A/250V
--Working height:Max 2000m
--Monitor:6000 counts LCD monitor
--Maximum display value:5999 digits
--Polarity indication:automatic indication, '-' indicates negative polarity
--Over-range display:'0L' or '-0L'
--Sampling time:about 3 times / second
--Automatic power off time:about 15 minutes when no signal
--Battery type:6F22 9V battery(NOT INCLUDE)
--Temperature coefficient:less than 0.1 × accuracy / ℃
--Working temperature:18 ℃ ~ 28 ℃
--Storage temperature:-10 ℃ ~ 50 ℃
