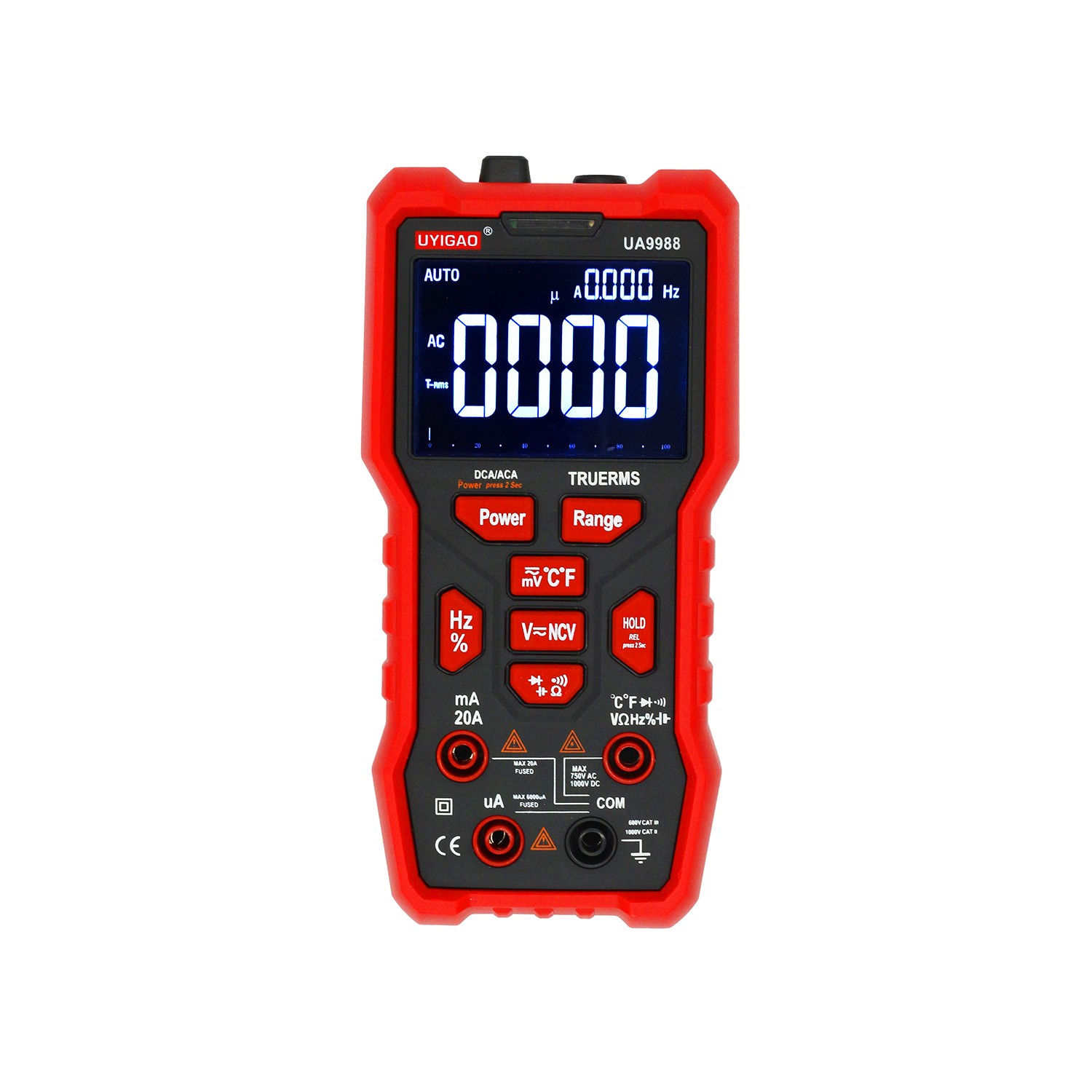

UA9988 Smart Digital Multimeter

Intelligent button multimeter high precision digital universal meter digital display electrical appliance repair

 True RMS Digital multimeter with Analog Bar Graph Temp Sensor Test AC/DC Voltage Ammeter Current Ohm multi tester

Features:

1.Can measure AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle, diode, continuity, NCV and temperature.

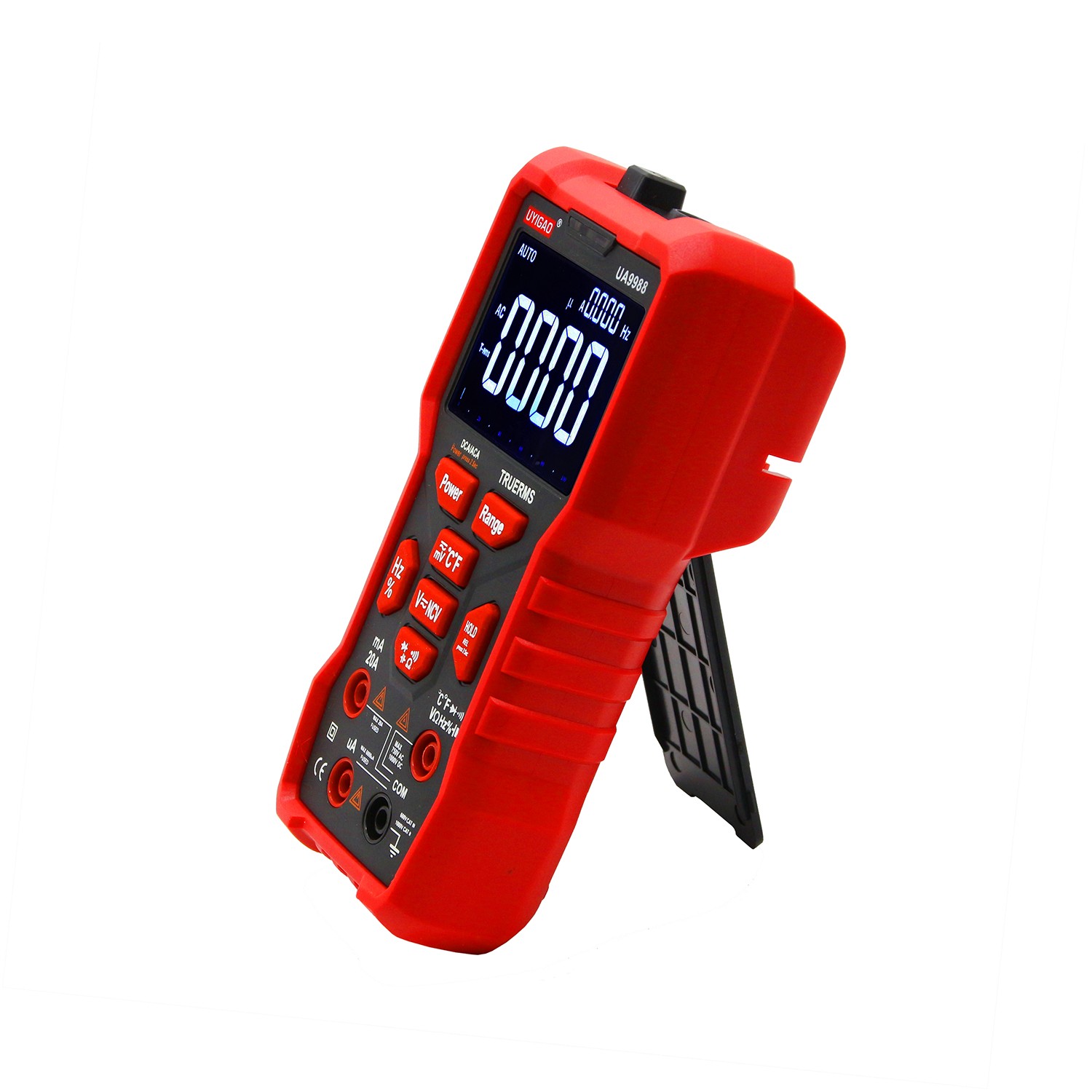

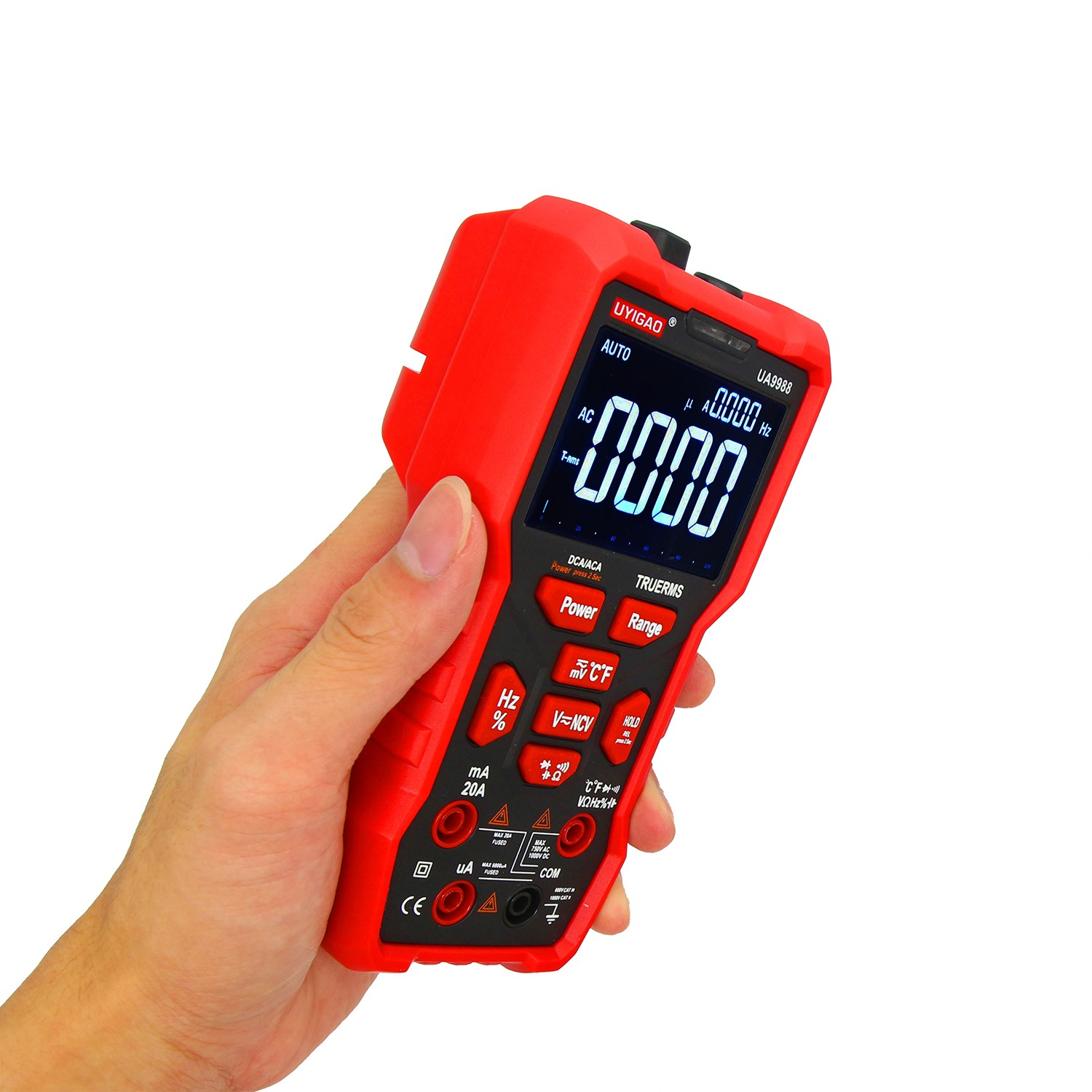

2.Portable Design: It's small and handheld, there is a back bracket for supporting multimeter.

3.Wide range of applications: It's a perfect tool for the laboratory, factory and home.

4.Easy to use & clear to read: With large LCD Backlight display and data hold, convenient to read data in the dark.

5.More advantages: Auto range, true RMS, auto power off, low battery indication and over range indication.



Description:

1.This MultiMeter is a handheld digital multimeter, high reliability and portability, a perfect tool for the laboratory, factory and home.

2.It can measure AC/DC voltage, AC/DC current, resistance, capacitance,

frequency, duty cycle, diode, continuity, NCV and temperature.

3.Moreover,more advantages such as backlight, data hold, auto range, true RMS, auto power off, low battery indication and over range indication.



Specifications:

Color: Black & Red

Display:9999 Counts

Backlight: Yes

Data hold: Yes

Auto range: Yes

True RMS: Yes

Auto power off: Yes

Low voltage indication: Yes

Over range indication: Yes

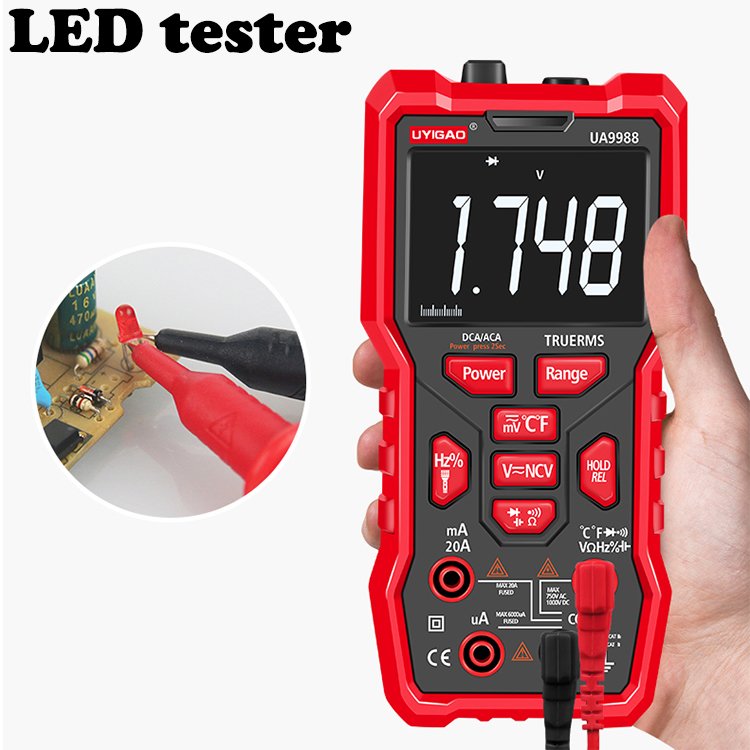

Diode test: Yes

Continuity test: Yes

NCV test: Yes

DC voltage: 999.9mV/9.999V/99.99V/999.9V±(0.5%+3),9.999mV/99.99mV±(0.5%+3)

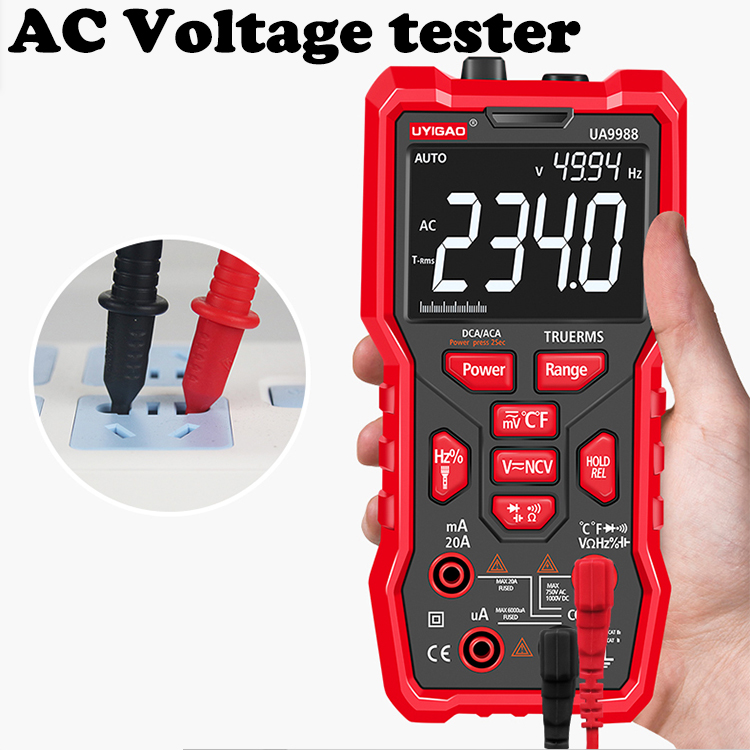

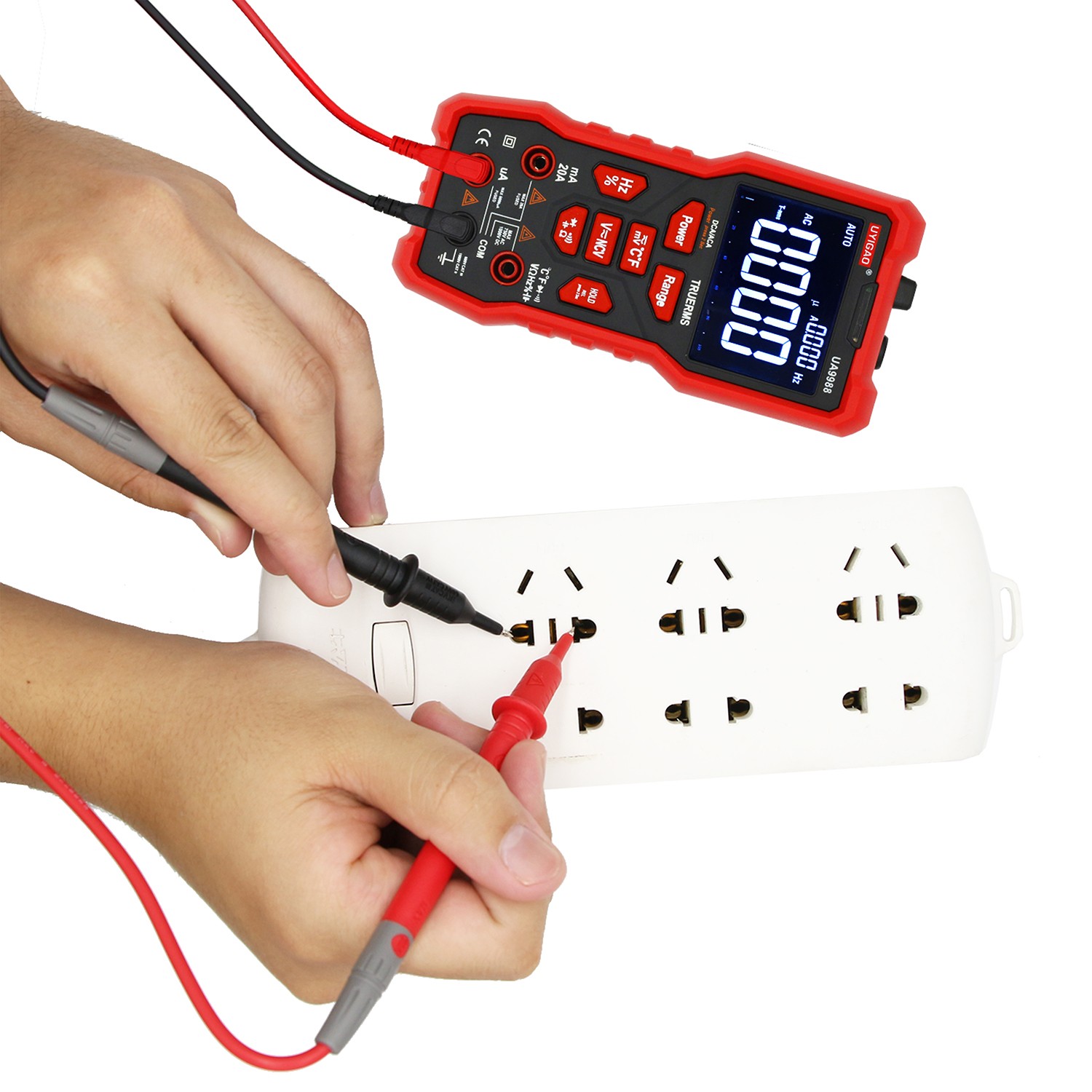

AC voltage: 999.9mV/9.999V/99.99V/750V±(1.0%+3),9.999mV/99.99mV±(1.0%+3)

DC current: 999.9mA/9.999A±(1.0%+3),99.99mA/9999μA±(0.8%+3)

AC current: 999.9mA/9.999A±(1.2%+3),99.99mA/9999μA±(1.0%+3)

Resistance: 99.99Ω±(1.0%+3),999.9Ω/9.999kΩ/99.99kΩ/999.9kΩ±(0.5%+3),

9.999MΩ±(1.5%+3),99.99MΩ±(3.0%+5)

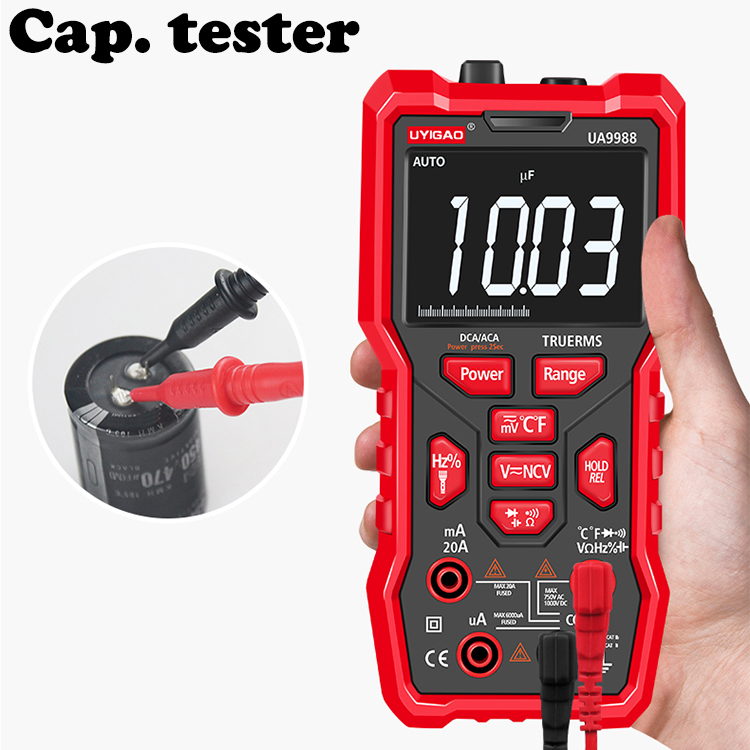

Capacitance:9.999nF±(5.0%+20),

99.99nF/999.9nF/9.999μF/99.99μF/999.9μF±(2.0%+5),9.999mF±(5.0%+5)

Frequency:99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/5.000MHz ±(0.1% + 2)

Duty Cycle:1%~99%±( 0.1%+2)

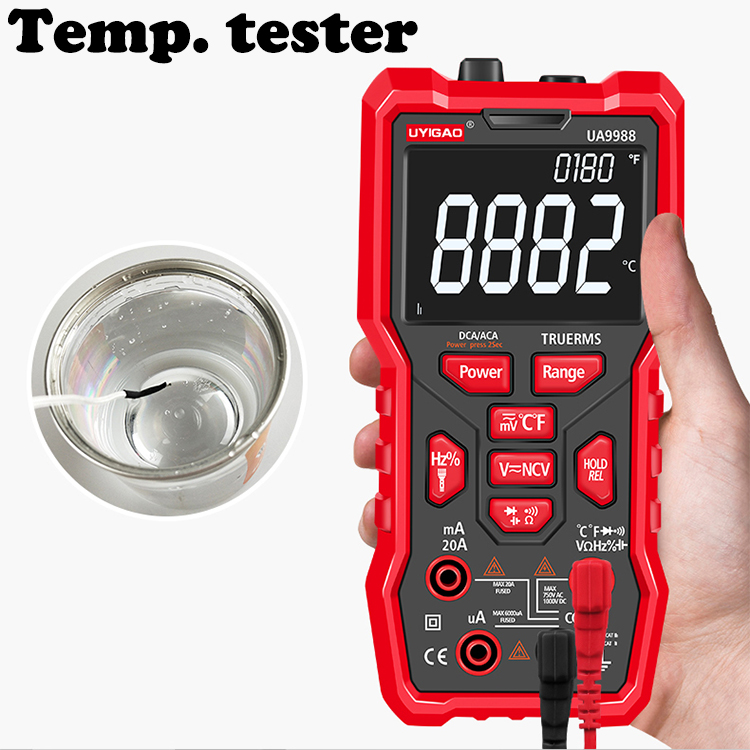

Temperature:-20°~1000°(-4°~1832°)±(2.5%+5)

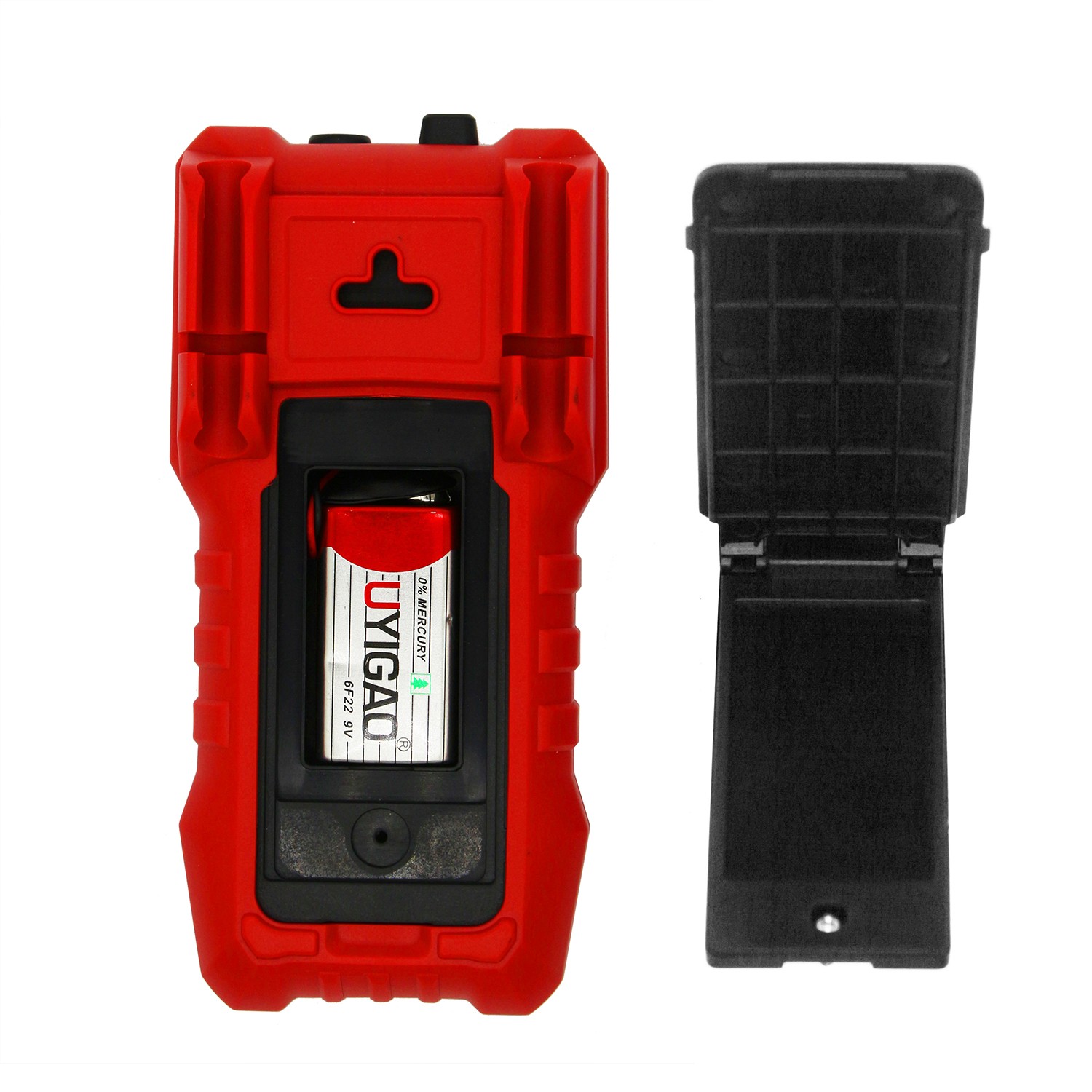

Supply power:6F22 9V battery (not included)



Package List:

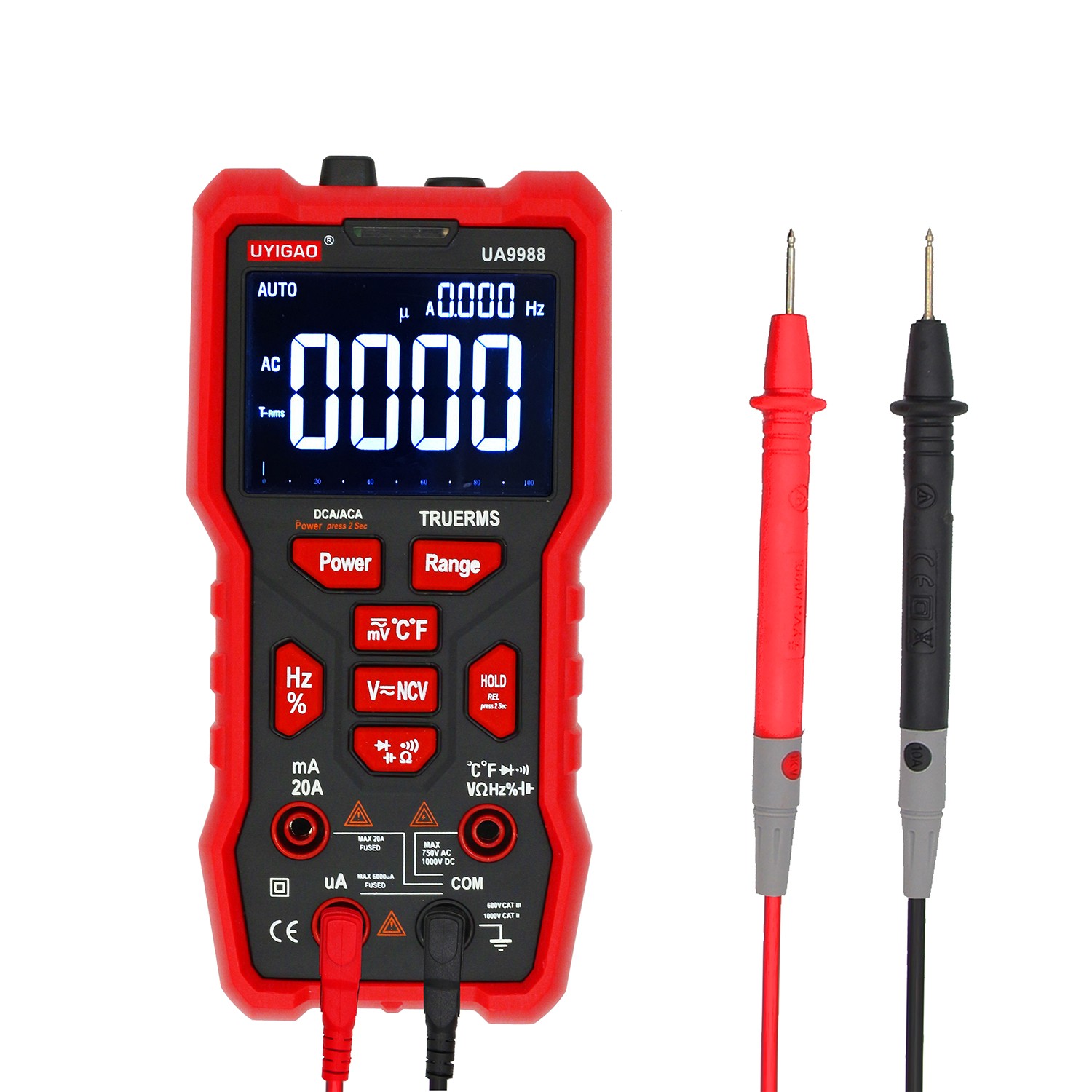

1 xDigital Multimeter
2 xTest Leads Pens
1 xTemperature Test Cable
1 xUser Manual
