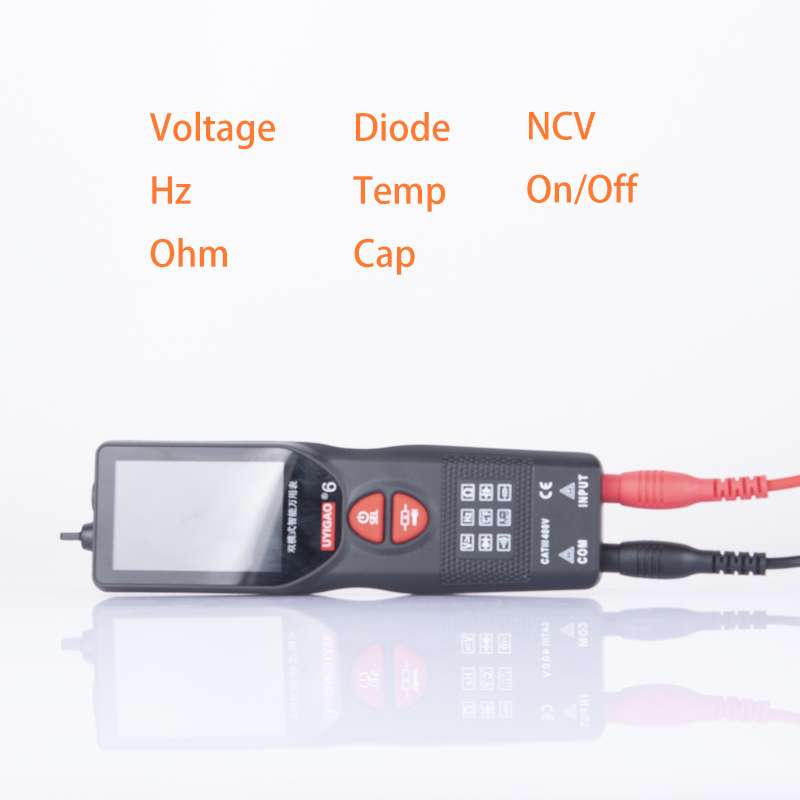

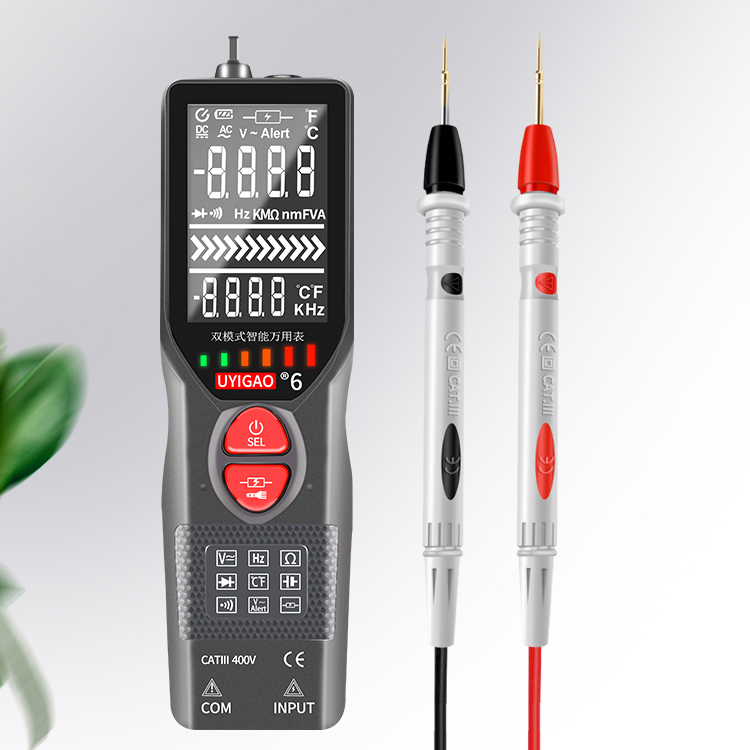

test pen smart digital multimeter

portable mini auto-ranging multimeter digital tester pocket professional hz auto range electronics smart digital multimeters

portable mini auto-ranging multimeter digital tester pocket professional hz auto range electronics smart digital multimeters

Product Description

Measurement & Analysis Instruments Electrical Instruments Multimeters

Key Specifications/Special Features:

5999 digital multimeter for measuring capacitance, resistance, temperature, TRMS, NCV, torch, 400V AC/DC voltage

  •  General characteristics:
    1. Display: LCD
    2. Maximum display: 5999, 3 5/6 automatic polarity display and unit display
    3. Measurement methods: double integral A/D conversion
    4. Sampling rate: 3 times /second
    5. Over range display: OL
    6. Low voltage display: display low voltage symbols
    7. Working environment: 0 to 40°C Relative humidity: <80%
    8. Storage environment: -10 to 50°C Relative humidity: <80%
    9. Battery: 2*1.5V AAA battery
    10. Volume size: 150 x 42 x 20mm
    11. Weight: about 95g (including battery)

Basic functionRangeBasic accuracy
DC voltage6/60/400V± (0.5%+5)6/60V
± (0.8%+5)
: 400V
AC voltage6/60/400V± (0.8%+3d): 6/60V
± (1.0%+10d): 400V
Resistance600/6k/60k/600k/6M/20M± (0.8%+3d): 600Ω/
   6/60/600kΩ
± (1.2%+3d): 6MΩ/600MΩ
Capacitance

60.00nF/600.0nF/6.000uF/60.00uF

/600.0uF/6.000mF/60.00mF


± (4.0%+3d): 9.999nF/99.99nF/999.9nF/

9.999uF/99.99uF
/999.9uF
± (5.0%+3d): 9.999mF
not specify: 99.99mF

Temperature-20 to 300°C
301 to 1000°C
-4-600°F
601-1832°F
-20-300ºC: ± (1.0%+4)
301 to 1000°C: ± (1.9%+5)
-4-600°F:± (1.2%+6)
601-1832°F ± (1.9%+6)
Frequency10Hz/100Hz/1kHz± (1.0%+3d)
Special function

NCV  test V
Diode testing V
Low battery display V
Automatic turn-0ffV
Function protectionV
Automatic resettable fuseV
BacklightV
Self recovered SafetyV
Operation mode Auto range
Maximum display 5999
Weight100g, 150(L)×42(W)×20(H)mm
Power2*1.5V AAA NOT including by air freight.
