ua2018b digital clamp meter

UA2018B AC Clamp Multimeter Handheld Digital Ammeter Electrician Meter Voltage Measurement

 Digital clamp meter, AC/DC Current AC/DC Voltage Resistance Capacitance Temperature Frequency Duty Ratio Inrush Current NCV Diode Tester with Clam& Flashlight

UA2018ATemperature; Torch; Auto power off; CATIII 600V; 1999; double open 36mm;DCV 6V-600V,ACV 6V-600V,Transistor test ;ACA:6A-600A,.Capacitance ;Duty Ratio ;Frequency; Backlight ;Data hold
UA2018BTemperature; torch; Auto power off; CATIII 600V; 5999; double open 36mm;DCV 6V-600V,ACV 6V-600V,Transistor test ;ACA:6A-600A,.Capacitance ;Duty Ratio ;Frequency; Backlight ;Data hold
UA2018DTemperature; torch; Auto power off; CATIII 600V; 5999 ;with analog strip; double open 36mm;DCV 6V-600V,ACV 6V-600V,Transistor test ;ACA:6A-600A, Capacitance ;Duty Ratio ;Frequency; Backlight ;Data hold

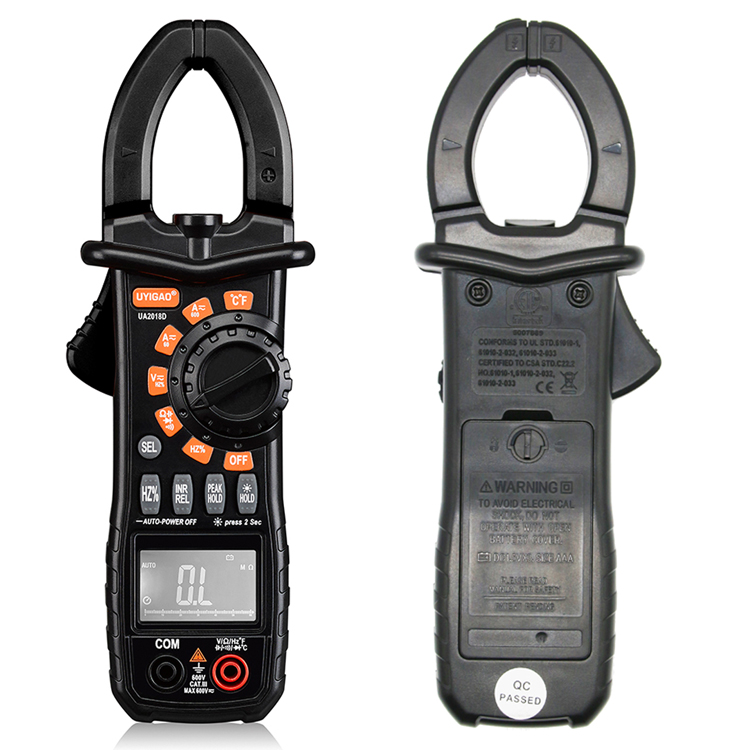

UA2018D General characteristics:

CE Certified Clamp Meter for Testing AC/DC Current, AC/DC Voltage,Resistance,Capacitance,Temperature,Frequency,Inrush Current, NCV, Diode.

DC Voltage and Accuracy:6V~600V ±(0.8%+5)

AC Voltage and Accuracy: 6~600V ±(1.2%+5)

Resistance and Accuracy: 600Ω~60MΩ ±(1.2%+5)

Temperature and Accuracy:-50°C-300°C±(1.0%+4)

Temperature and Accuracy:301°C-1000°C±(1.9%+5)

Temperature and Accuracy:-58°F-600°F±(1.2%+6)

Temperature and Accuracy:601°F-1832°F±(1.9%+6)

Duty Ratio(AC Voltage test):10%-90%±(0.5%+3)

Frequency(AC Voltage Test):0Hz~10MHz ±(0.3%+5)

AC Current and Accuracy:6A~600A ±(2.5%+8)

DC Current and Accuracy:60A~600A ±(2.5%+10) Capacitance:9.99nF/99.99nF/999.9nF/9.999mF/99.99mF/999.9mF(3.0%+5)

Inrush Current: 6A-600A

Max display value: 5999

NCV Test: Yes

Diode Test: Yes

ON-OFF Buzzer: Yes

Low Battery Display: Yes

Data Hold: Yes

Auto Power off: Yes

Function Protection: Yes

Operating Mode: Auto+ Manual Range

Back Light Function: Yes

Back Lighting: Yes

Led Torch: Yes

LCD Size:38x28mm

Max Clamp Jaw Opening:φ36mm

Power Supply: AAA 1.5V*3 Batteries

Weight:240g

Sampling Rate: about 3 times / sec.

Display: 3 number 3/4 digital LCD display.

Clamp Flashlight , LCD Backlight, Date Hold and Low Battery Indication.

Power: 3 x AAA 1.5V (batteries are not included )

Maximum jaw opening size: 36mm

Comes with upgraded AC1000V class III test leads.

Overload protection: 600V DC AC RMS



Product Specifications

Model

UA2018A

UA2018B

UA2018D

AC Current

6A/60A/600A

DC Current

------

------

60A/600A

DC Voltage

60mv/600mv/6v/60vv/600v

Resistance Test

60mΩ/6mΩ/600Ω/6kΩ/60kΩ/600kΩ

Temperature(℃/℉)

------

-50℃-1000℃

-58℉-1832℉

-50℃-1000℃
-58℉-1832℉

Capacitance Test

------

9.999nf-99.99mf

9.999nf-99.99mf

Diode Test

Yes

Disconnect

Yes

Frequency Test

------

Yes

Yes

LED Backlight

Yes

Flashlight

Yes

Data Keep

Yes

Max display

1999

5999

5999

Caliper Opening Dimension

40mm

Battery

1.5V AAA The three

Fuselage Size

210*35*12mm

Parts

Probe pen+Meter bag

Probe pen+Meter bag

+K-Type

Probe pen+Meter bag
+K-Type
