ua2008d digital clamp meter

AC DC current tongs amperimetro Clamp Meter diagnostic-tool escapamento Digital pinza amperimetrica UA2008D

Products Description

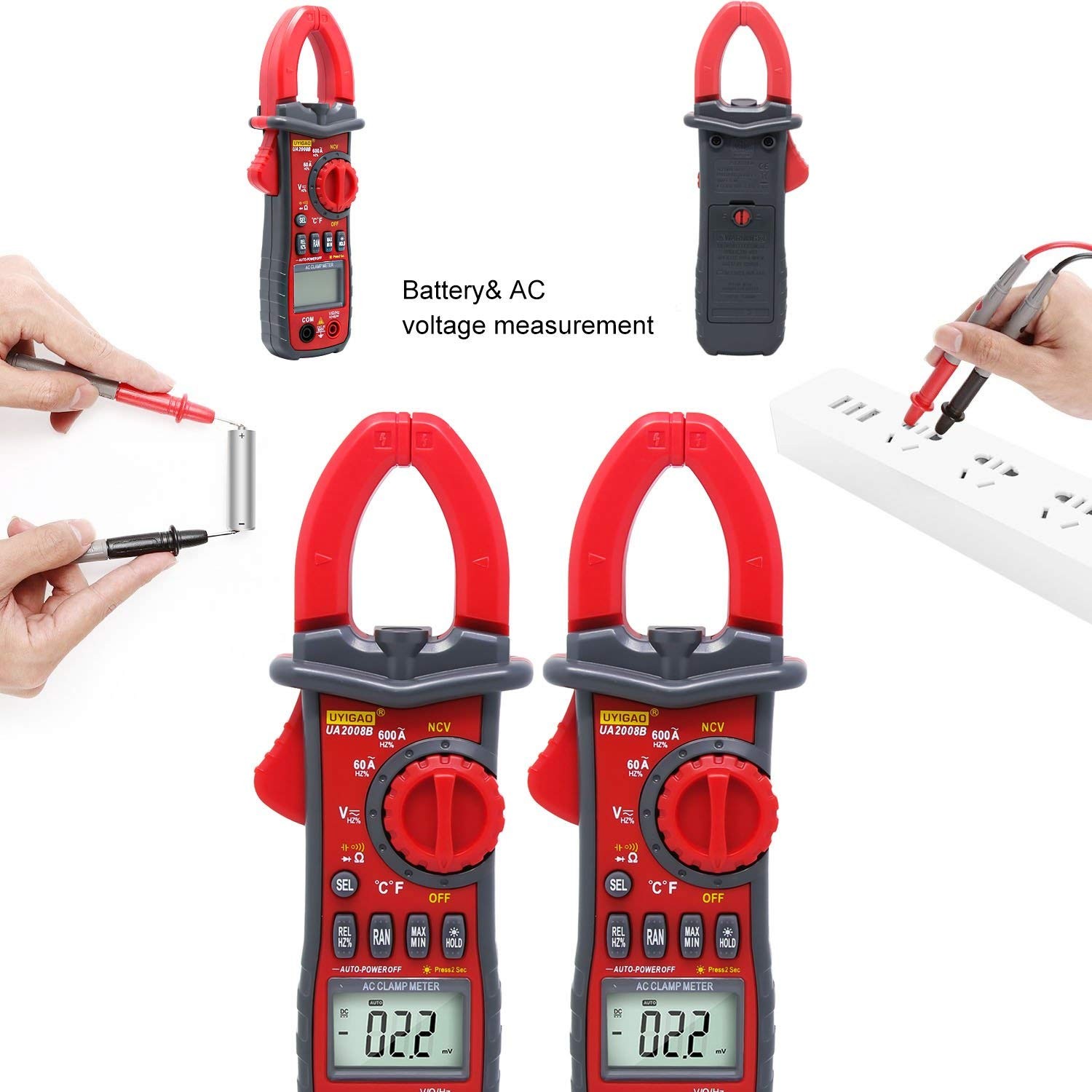

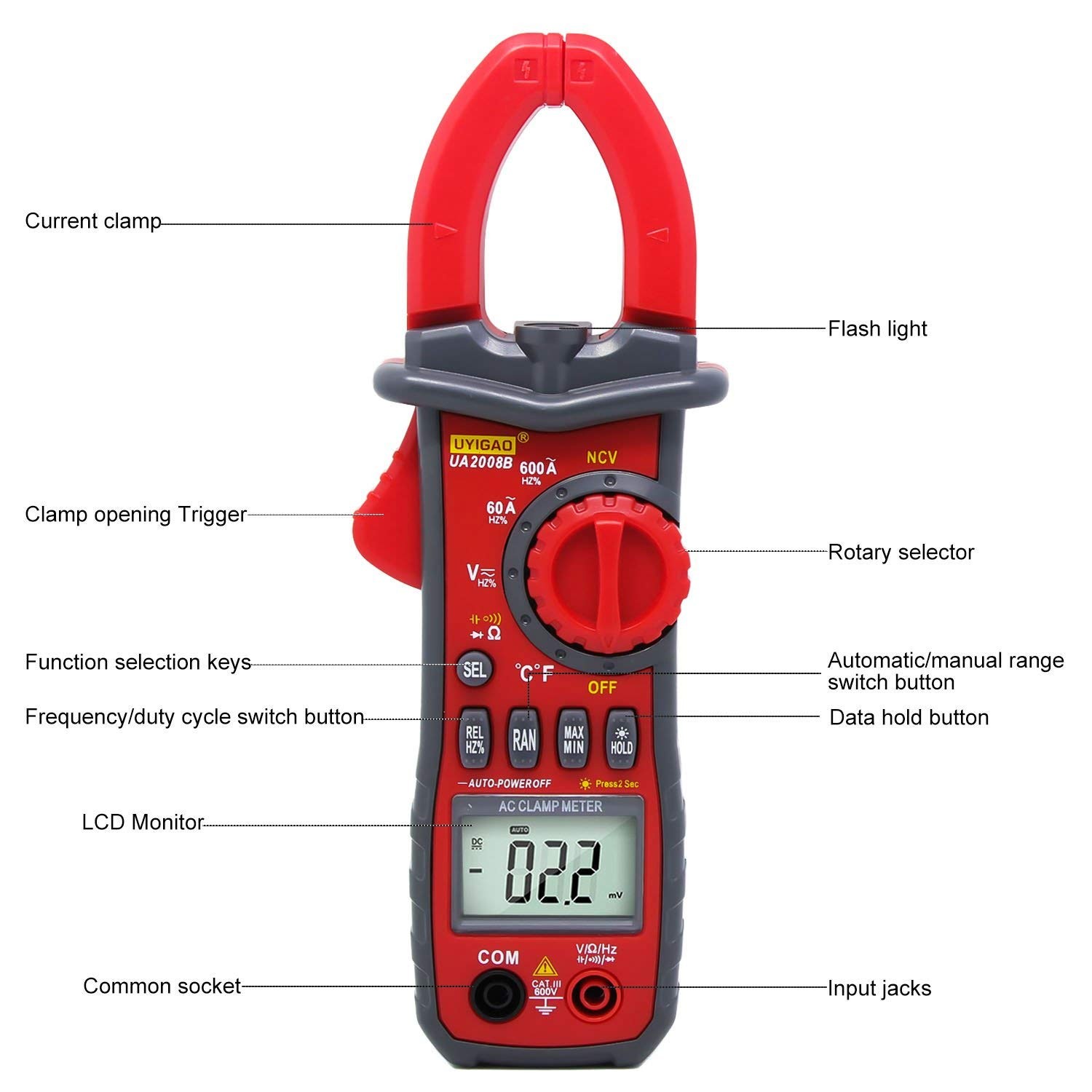

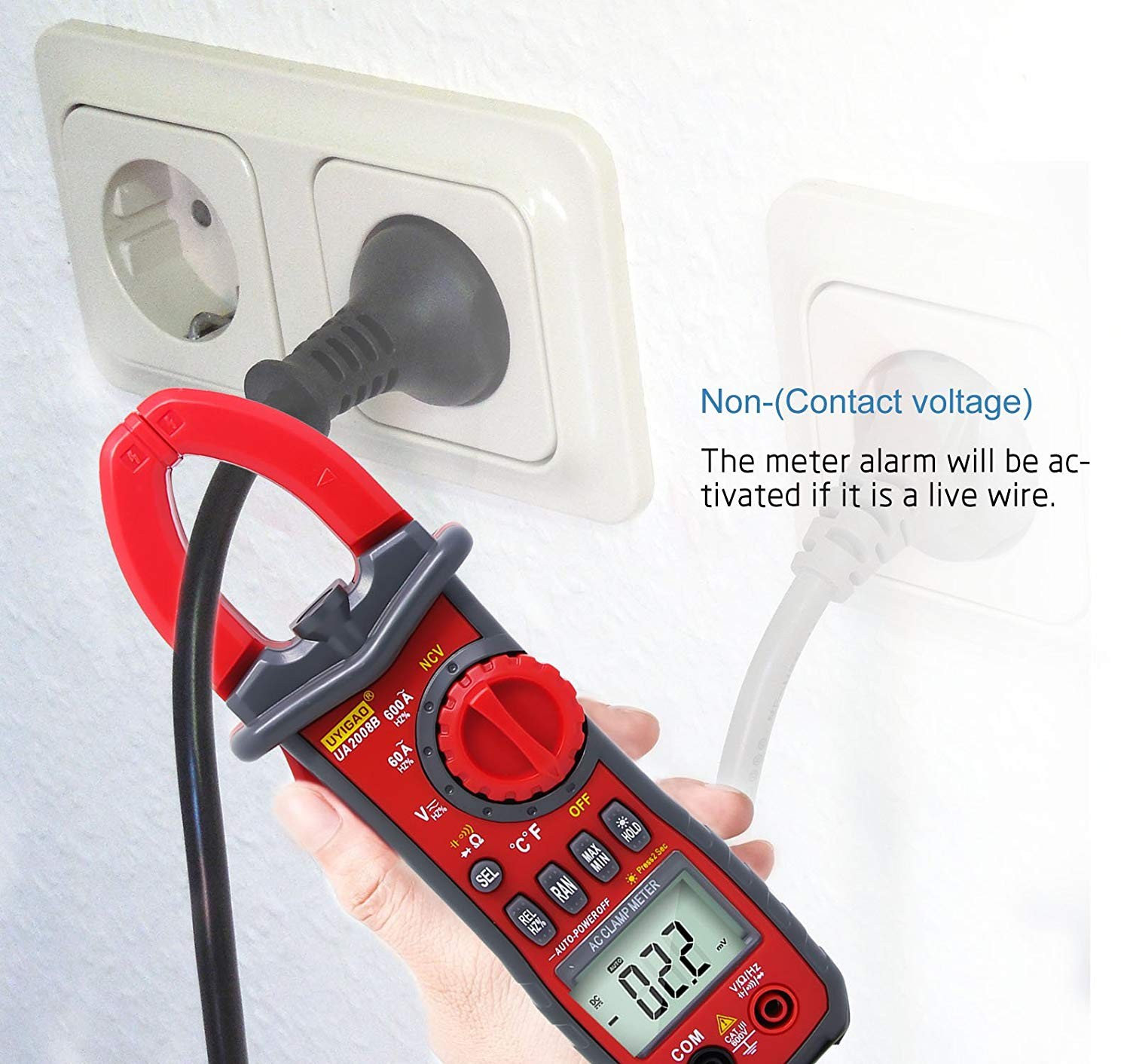

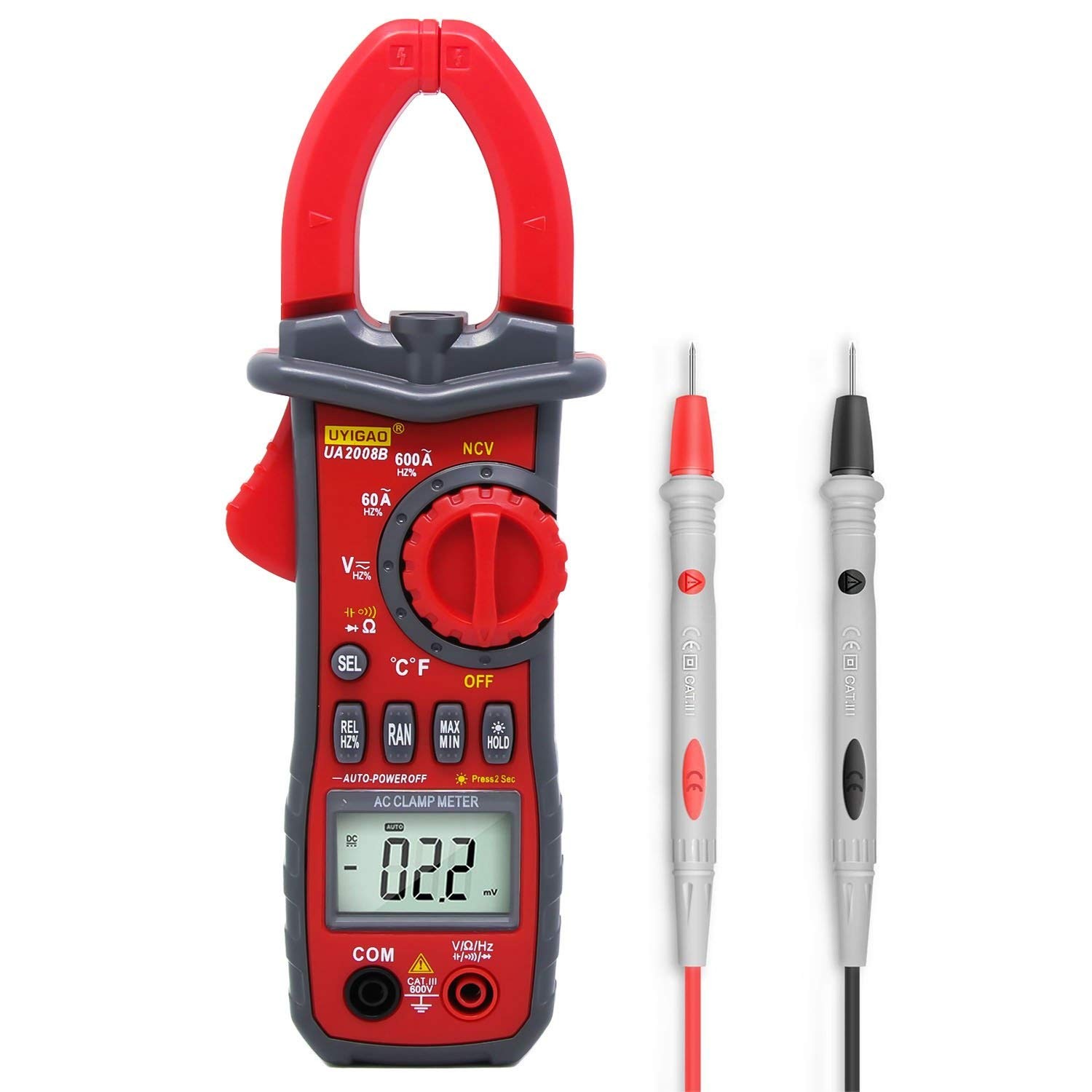

UA2008D digital clamp meter

Brand Name:

UYIGAO

Model Number:

UA2008D

Product Name:

Digital Clamp Meter

Measuring Current:

600A

Measuring Voltage:

600V

Measuring Resistance Range:

60MΩ

Measuring Capacitance Range:

99.9mF

Product Specifications

Model

UA2008A

UA2008B

UA2008D

AC Current

6A/60A/600A

DC Current

------

------

60A/600A

DC Voltage

60mv/600mv/6v/60vv/600v

Resistance Test

60mΩ/6mΩ/600Ω/6kΩ/60kΩ/600kΩ

Temperature(℃/℉)

------

-50℃-1000℃

-58℉-1832℉

-50℃-1000℃
-58℉-1832℉

Capacitance Test

------

9.999nf-99.99mf

9.999nf-99.99mf

Diode Test

Yes

Disconnect

Yes

Frequency Test

------

Yes

Yes

LED Backlight

Yes

Flashlight

Yes

Data Keep

Yes

Max display

1999

5999

5999

Caliper Opening Dimension

40mm

Battery

1.5V AAA The three

Fuselage Size

210*35*12mm

Parts

Probe pen+Meter bag

Probe pen+Meter bag

+K-Type

Probe pen+Meter bag
+K-Type
